LinearColor Flex 8/400

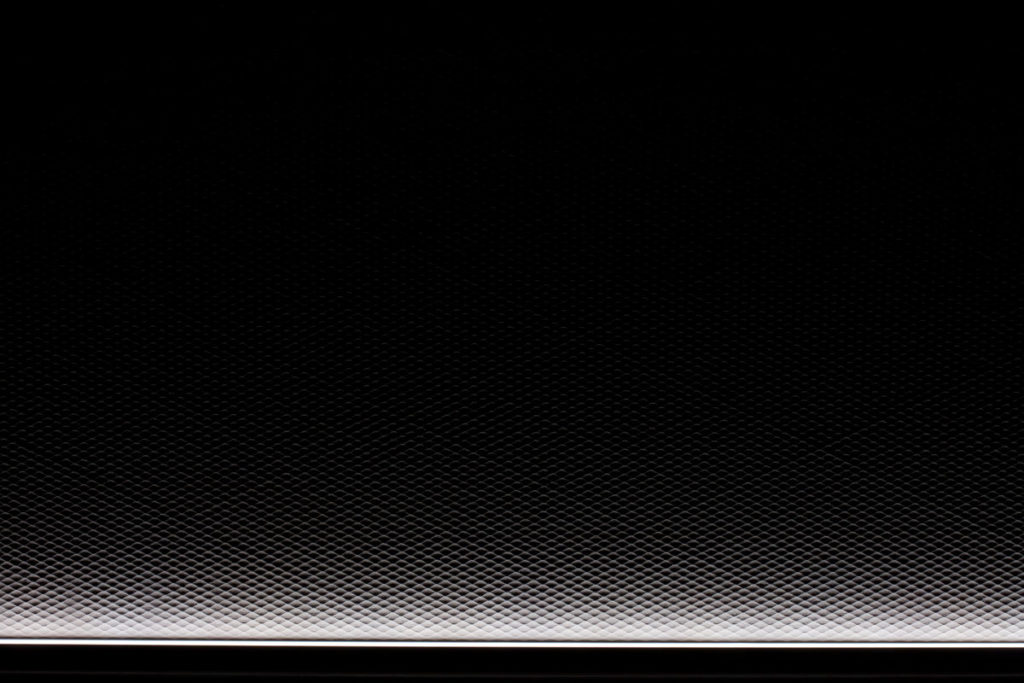

With its sleek shape and completely homogenous and diffuse luminous output, the LinearColor Flex 8 is the right choice for direct lighting in design-sensitive installations. Because of its design, it is highly flexible along its horizontal axis, while also enabling vertical radii in excess of 1000 mm.

The LinearColor Flex 8/400 comes equipped with high-quality Japanese LED, and has a colour rendering of up to Ra 90 and a wide range of possible light colours. The various connector variants available from our assembly service allow you to create endless, continuous lines of light, which you can also safely use for highlighting or lighting in outdoor areas, underwater, or in sensitive areas. Thanks to its IK10 protection and resistance to chemicals, this strip is also perfect for floor lighting or for use in areas subject to high mechanical loads.

Technical data

Light colourSingle White
Luminous flux170 lm/m
Power9,6 W/m
Light surfaceDiffuse
Colour temperatures2700K, 3000K, 4000K, 5000K
CRI> 90 (at 5000 K > 80)
Voltage24 V
IP protection class stripIP68
IP protection class connectorsIP68
IK protection classIK10

Technical drawing

Assembly service

Be it 5 cm or 13 m – we cut the strip to the dimensions that you need, and provide the connectors and end-caps to ensure that you receive a self-contained, IP68-protected lighting system suitable for permanent underwater use. Further information on the connector and end-cap variants can be found on the data sheets.

Areas of application

Façade accentuation
Bespoke lighting
Direct pathway lighting
Stair lighting
Architectural staging
Floor lighting
Garden lighting
Barn lighting
